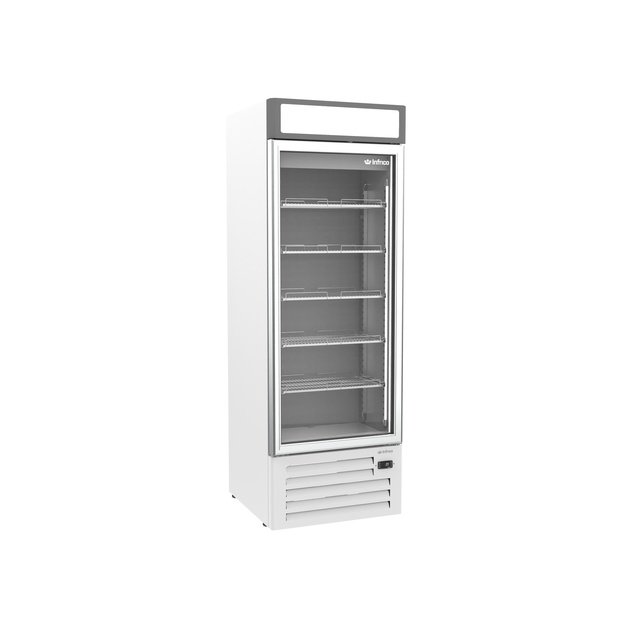

INFRICO NEC501RV is a display refrigerator for displaying drinks and chilled products with compatible storage requirements in shops, bars, cafés and petrol stations. Its 500 litre capacity supports an everyday assortment, while glass doors let customers see products without opening the cabinet.
The canopy above the doors and internal LED lighting help merchandise the assortment. NEC refrigerators and freezers share the same range styling, allowing a coordinated chilled and frozen display. Operating modes depend on the exact modification: the refrigerator and freezer are separate appliances.
Pair this single-door refrigerator with the single-door NEC501FV freezer, which has matching styling and the same 687 x 705 x 2010 mm external dimensions. The single-door static NEC401FS is another option, but is 670 mm deep and has fixed shelves.
Allow for 687 mm width, 705 mm depth and 2010 mm height. Provide space for the hinged doors to open. The operating range is +2 to +8 °C. This is a storage and display cabinet, not a blast freezer for rapidly freezing warm products.
Refrigeration is integrated. Keep ventilation openings clear and provide access for condenser maintenance. Warranty: 2 years.
The black front choice covers the doors, control panel and lower grille; it does not make the entire body or interior black. The standard and black front have the same price. The RGB LED surcharge covers the door of the single-door cabinet.
When choosing static NEC401FS, allow for fixed shelf heights and periodic manual defrost. An overnight defrost can be planned: transfer stock to another freezer, switch the appliance off and disconnect it. NEC501FV uses forced-air cooling and hot-gas defrost, so this procedure does not apply to it.

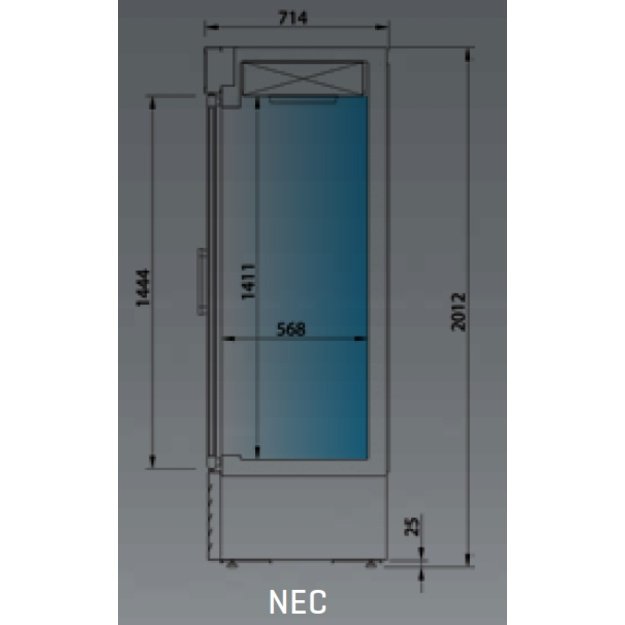

INFRICO ERV / ERC / NEC – technical data and dimensional drawings (PDF)
| General information | |
|---|---|
| Manufacturer SKU – standard model | NEC501RV |
| Series | NEC |
| Purpose | Beverage and chilled product display |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | +2 to +8 |
| Climate Class | 4 |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 500 |
| Shelf depth, mm | 460 |
| Shelves quantity, pcs | 5 |
| Shelf dimensions, mm | 530 x 460 |
| Dimensions and weight | |
|---|---|
| Width, mm | 687 |
| Depth, mm | 705 |
| Height, mm | 2010 |
| External Dimensions (W×D×H), mm | 687 x 705 x 2010 |
| Construction and materials | |
|---|---|
| Exterior | Epoxy painted steel |
| Interior finish | Epoxy painted steel |
| Wall Thickness, mm | 50 |
| Insulation Density, kg/m³ | 40 |
| Door / Lid No & Type | 1 hinged glass |
| Controls and functions | |
|---|---|
| Controller Type | Digital IP65 |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Forced air |
| Refrigerant | R290 |
| Defrost Type | Off-cycle |
| Energy and electrical data | |
|---|---|
| Energy class | C |
| Energy Consumption, kWh/24h | 4.22 |
| Input Power, W | 414 |
| Voltage / Frequency, V/Hz | 230 / 1 ph / 50 |
