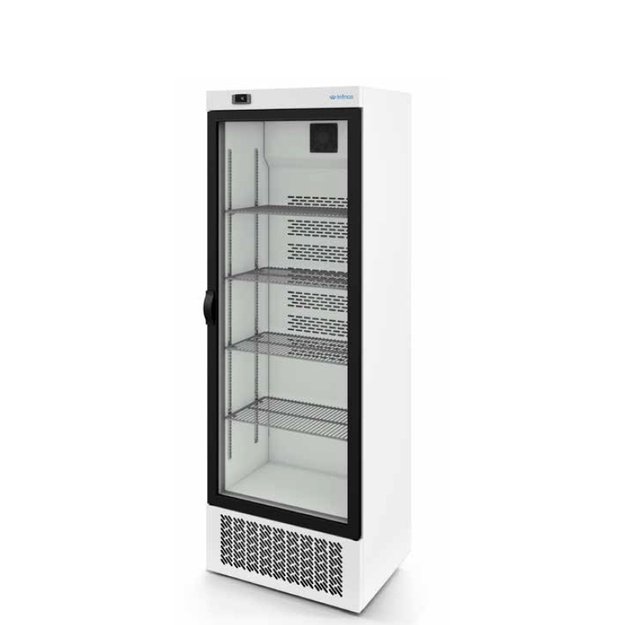

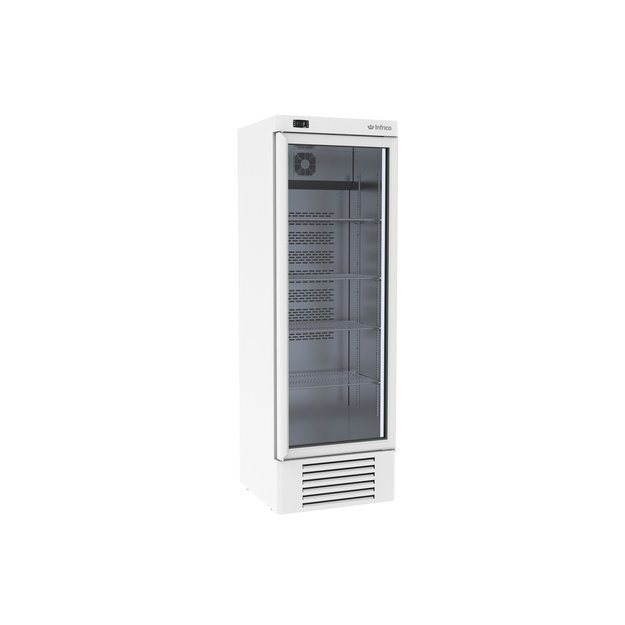

INFRICO ERC36B is a display refrigerator for displaying drinks and chilled products with compatible storage requirements in shops, bars, cafés and petrol stations. Its 355 litre capacity supports an everyday assortment, while glass doors let customers see products without opening the cabinet.
A hinged glass door and forced-air cooling suit a compact beverage or chilled-pack display. Internal LED lighting makes shelves easier to browse and the digital controller assists temperature monitoring. Check that the +4 to +8 °C range matches the storage requirements of the products.
Allow for 620 mm width, 595 mm depth and 1870 mm height. Provide space for the hinged doors to open. The operating range is +4 to +8 °C. This is a storage and display cabinet, not a blast freezer for rapidly freezing warm products.
Refrigeration is integrated. Keep ventilation openings clear and provide access for condenser maintenance. Warranty: 2 years.
Finish choice: white or black, with no surcharge for either standard colour. The ERC interior and exterior finish are coordinated to the selected standard version.
For frozen-product display, consider the single-door INFRICO ERC50PHBT freezer. This is a larger 500 litre alternative: its 687 x 842 x 2003 mm dimensions differ from this compact 355 litre ERC36B refrigerator. Allow for the greater width, depth and height when planning the installation.
INFRICO ERV / ERC / NEC – technical data and dimensional drawings (PDF)
| General information | |
|---|---|
| Manufacturer SKU – standard model | ERC36B |
| Series | ERC |
| Purpose | Beverage and chilled product display |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | +4 to +8 |
| Climate Class | 4 |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 355 |
| Shelves quantity, pcs | 4 |
| Dimensions and weight | |
|---|---|
| Width, mm | 620 |
| Depth, mm | 595 |
| Height, mm | 1870 |
| External Dimensions (W×D×H), mm | 620 x 595 x 1870 |
| Construction and materials | |
|---|---|
| Exterior | Epoxy painted steel |
| Interior finish | Epoxy painted steel |
| Wall Thickness, mm | 50 |
| Insulation Density, kg/m³ | 40 |
| Door / Lid No & Type | 1 hinged glass |
| Controls and functions | |
|---|---|
| Controller Type | Digital IP65 |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Forced air |
| Refrigerant | R290 |
| Defrost Type | Off-cycle |
| Energy and electrical data | |
|---|---|
| Energy class | n.d. |
| Energy Consumption, kWh/24h | n.d. |
| Input Power, W | 401 |
| Voltage / Frequency, V/Hz | 230 / 1 ph / 50 |
