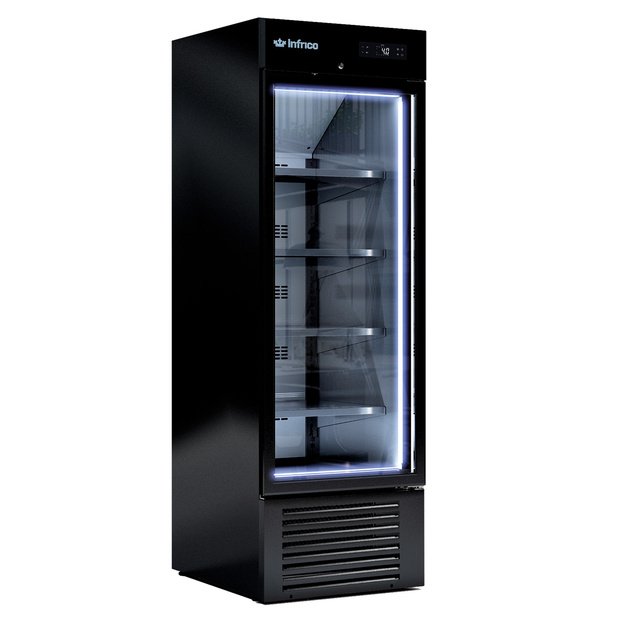

Single-door display freezer INFRICO ERC50PHBT – 500 l

INFRICO ERC50PHBT is a display freezer for displaying packaged frozen food in a shop, petrol station or self-service sales area. Its 500 litre capacity supports an everyday assortment, while glass doors let customers see products without opening the cabinet.

MINIMARKET self-service merchandising

Hinged glass doors provide direct access to the selected section. Optimised air circulation supports a more even internal temperature, while internal LED lighting keeps the assortment visible. Doors have locks. BT is the freezer modification for frozen food rather than positive-temperature beverage storage.

Selection guide for this model

Allow for 687 mm width, 842 mm depth and 2003 mm height. Provide space for the hinged doors to open. The operating range is -18 °C. This is a storage and display cabinet, not a blast freezer for rapidly freezing warm products.

Refrigeration is integrated. Keep ventilation openings clear and provide access for condenser maintenance. Warranty: 2 years.

Finish choice: white or black, with no surcharge for either standard colour. The ERC interior and exterior finish are coordinated to the selected standard version.

Matching ERC refrigerator

Pair this freezer with the single-door INFRICO ERC50PH refrigerator. The corresponding PH and PHBT models have the same door count, hinged glass doors and external dimensions, making it easier to plan chilled and frozen displays side by side. Choose the PH refrigerator for chilled products and this PHBT freezer for storing and displaying already frozen products.

For a more compact refrigerator position, also consider the single-door ERC36B refrigerator. Its capacity is 355 litres and dimensions are 620 x 595 x 1870 mm. This smaller alternative does not have matching cabinet dimensions.

INFRICO ERV / ERC / NEC – technical data and dimensional drawings (PDF)
