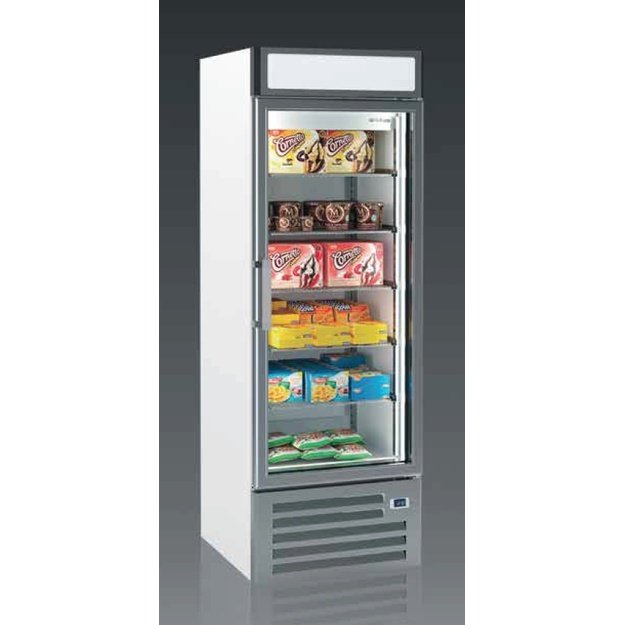

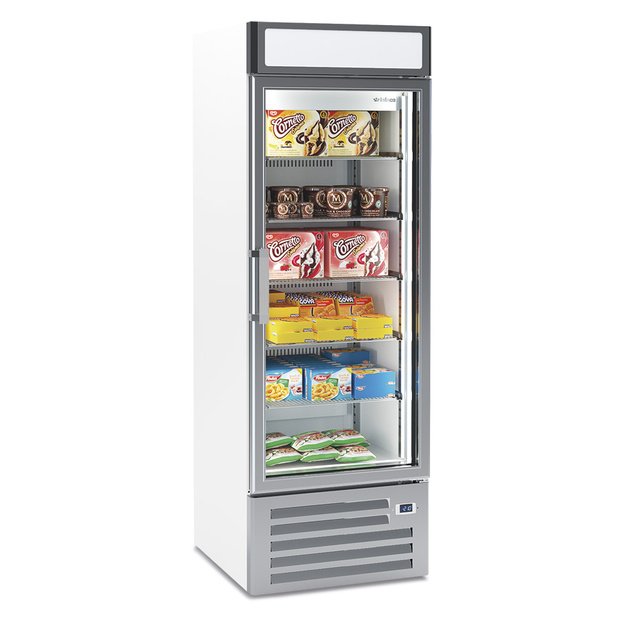

INFRICO NEC401FS is a display freezer for displaying packaged frozen food in a shop, petrol station or self-service sales area. Its 430 litre capacity supports an everyday assortment, while glass doors let customers see products without opening the cabinet.
The canopy above the doors and internal LED lighting help merchandise the assortment. NEC refrigerators and freezers share the same range styling, allowing a coordinated chilled and frozen display. Operating modes depend on the exact modification: the refrigerator and freezer are separate appliances.
Allow for 687 mm width, 670 mm depth and 2010 mm height. Provide space for the hinged doors to open. The operating range is -15 to -25 °C. This is a storage and display cabinet, not a blast freezer for rapidly freezing warm products.
NEC401FS uses static cooling. Its five refrigerated shelves have fixed heights and cannot be repositioned to suit different pack sizes. Frost must be removed by periodic manual defrosting. Plan an overnight defrost: move the stock to another freezer, switch off and disconnect this unit, and allow frost to melt naturally. Clean, dry and cool the cabinet to the required storage temperature before returning the products. Defrosting frequency depends on frost build-up and operating conditions.
Refrigeration is integrated. Keep ventilation openings clear and provide access for condenser maintenance. Warranty: 2 years.
The manufacturer uses a shared NEC range photograph. NEC401FS has fixed shelves and is 670 mm deep.
The black front choice covers the doors, control panel and lower grille; it does not make the entire body or interior black. The standard and black front have the same price. The RGB LED surcharge covers the door of the single-door cabinet.

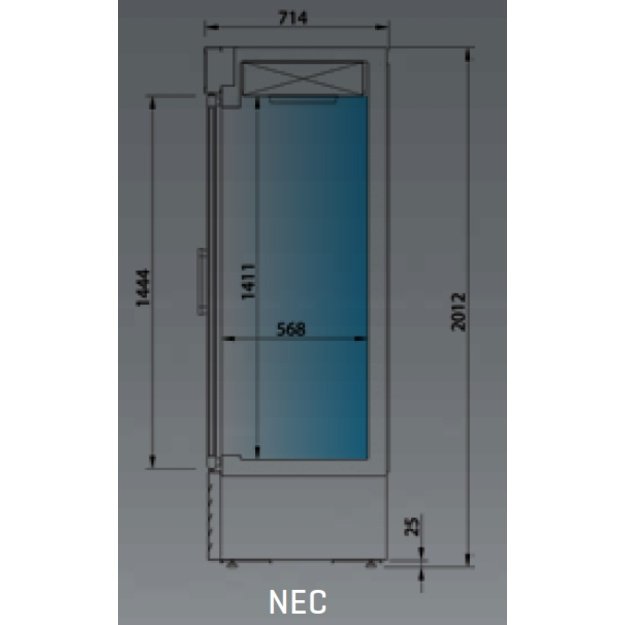

INFRICO ERV / ERC / NEC – technical data and dimensional drawings (PDF)
| General information | |
|---|---|
| Manufacturer SKU – standard model | NEC401FS |
| Series | NEC |
| Purpose | Frozen food display |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | -15 to -25 |
| Climate Class | 4 |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 430 |
| Shelf depth, mm | 556 |
| Shelves quantity, pcs | 5 |
| Shelf dimensions, mm | 438 x 556 |
| Dimensions and weight | |
|---|---|
| Width, mm | 687 |
| Depth, mm | 670 |
| Height, mm | 2010 |
| External Dimensions (W×D×H), mm | 687 x 670 x 2010 |
| Construction and materials | |
|---|---|
| Exterior | Epoxy painted steel |
| Interior finish | Epoxy painted steel |
| Wall Thickness, mm | 50 |
| Insulation Density, kg/m³ | 40 |
| Door / Lid No & Type | 1 hinged glass |
| Controls and functions | |
|---|---|
| Controller Type | Digital IP65 |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Static |
| Refrigerant | R290 |
| Defrost Type | Manual |
| Energy and electrical data | |
|---|---|
| Energy class | n.d. |
| Energy Consumption, kWh/24h | n.d. |
| Input Power, W | 487 |
| Voltage / Frequency, V/Hz | 230 / 1 ph / 50 |
