excl VAT

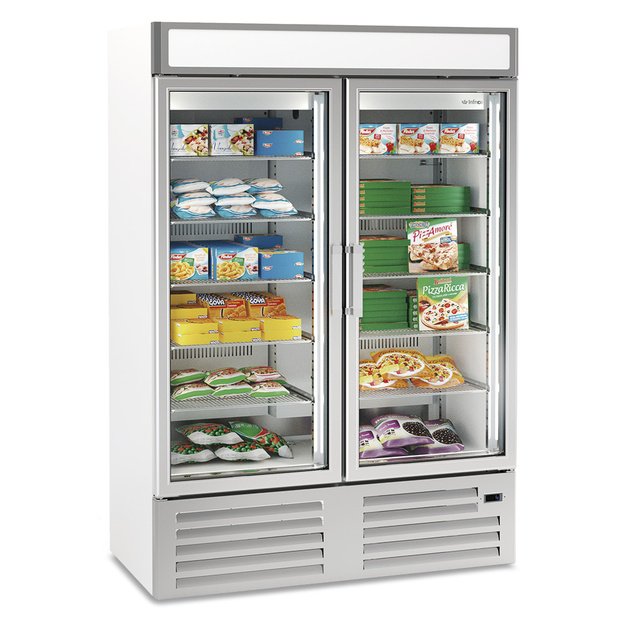

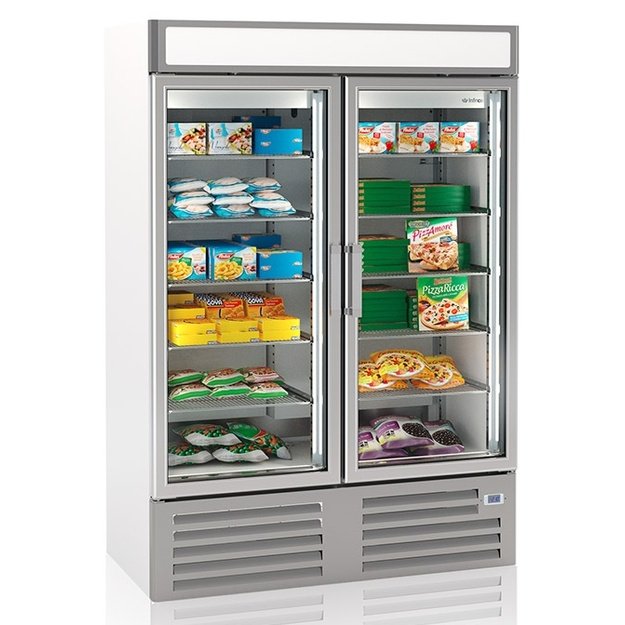

INFRICO NEC1002FV is a display freezer for displaying packaged frozen food in a shop, petrol station or self-service sales area. Its 1000 litre capacity supports an everyday assortment, while glass doors let customers see products without opening the cabinet.
The canopy above the doors and internal LED lighting help merchandise the assortment. NEC refrigerators and freezers share the same range styling, allowing a coordinated chilled and frozen display. Operating modes depend on the exact modification: the refrigerator and freezer are separate appliances.
The FV version has forced-air cooling, hot-gas defrost and a heated door frame to reduce ice build-up around the doors. Triple low-emissivity glazing with argon is designed for frozen-food display.
Allow for 1385 mm width, 705 mm depth and 2010 mm height. Provide space for the hinged doors to open. The operating range is -15 to -25 °C. This is a storage and display cabinet, not a blast freezer for rapidly freezing warm products.
Refrigeration is integrated. Keep ventilation openings clear and provide access for condenser maintenance. Warranty: 2 years.
The black front choice covers the doors, control panel and lower grille; it does not make the entire body or interior black. The standard and black front have the same price. The RGB LED surcharge covers both doors of the double-door cabinet.

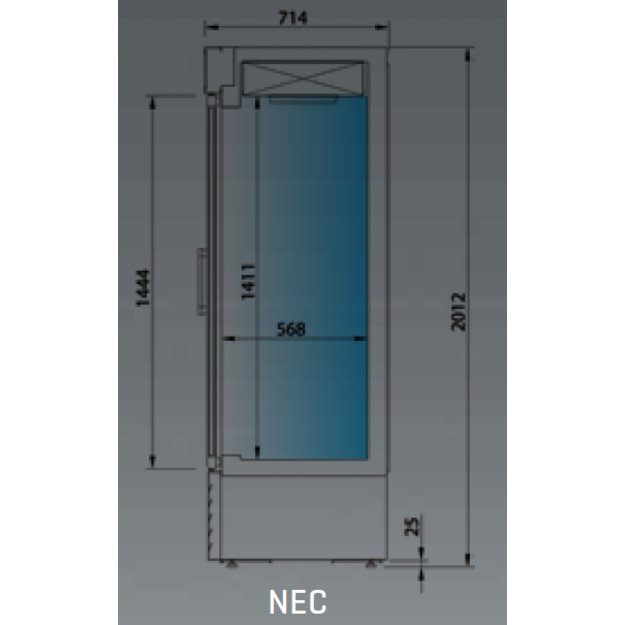

INFRICO ERV / ERC / NEC – technical data and dimensional drawings (PDF)
| General information | |
|---|---|
| Manufacturer SKU – standard model | NEC1002FV |
| Series | NEC |
| Purpose | Frozen food display |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | -15 to -25 |
| Climate Class | 4 |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 1000 |
| Shelf depth, mm | 510 |
| Shelves quantity, pcs | 10 |
| Shelf dimensions, mm | 530 x 510 |
| Dimensions and weight | |
|---|---|
| Width, mm | 1385 |
| Depth, mm | 705 |
| Height, mm | 2010 |
| External Dimensions (W×D×H), mm | 1385 x 705 x 2010 |
| Construction and materials | |
|---|---|
| Exterior | Epoxy painted steel |
| Interior finish | Epoxy painted steel |
| Wall Thickness, mm | 50 |
| Insulation Density, kg/m³ | 40 |
| Door / Lid No & Type | 2 hinged glass |
| Controls and functions | |
|---|---|
| Controller Type | Digital IP65 |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Forced air |
| Refrigerant | R290 |
| Defrost Type | Hot gas |
| Energy and electrical data | |
|---|---|
| Energy class | D |
| Energy Consumption, kWh/24h | 16.61 |
| Input Power, W | 1176 |
| Voltage / Frequency, V/Hz | 230 / 1 ph / 50 |
