INFRICO MS12 DCBA M1 – A specialist INFRICO Experience multideck for cheese and salted-cod display. MSDCBA encloses the display behind glass doors. Product-contact areas use AISI 316 stainless steel; the exterior and other specified interior components use AISI 304. Corrosion-resistant contact surfaces are particularly relevant to salty assortments. Product storage requirements must match the temperature application of the cabinet.
This base configuration measures 1330 × 685 × 2000 mm including both end panels. Catalogue capacity is 428 litres. Its standard temperature class is M1, with the manufacturer application range 0 to +2 °C.
The base price includes the cabinet and both compatible standard end panels. The overall width therefore already includes the two panels. Alternative panel types are charged as the pair-price difference.
Standard end panels are solid with a mirrored inner face; Display glass panels are an optional upgrade.
Contact us to coordinate any additional equipment and installation requirements for this configuration.

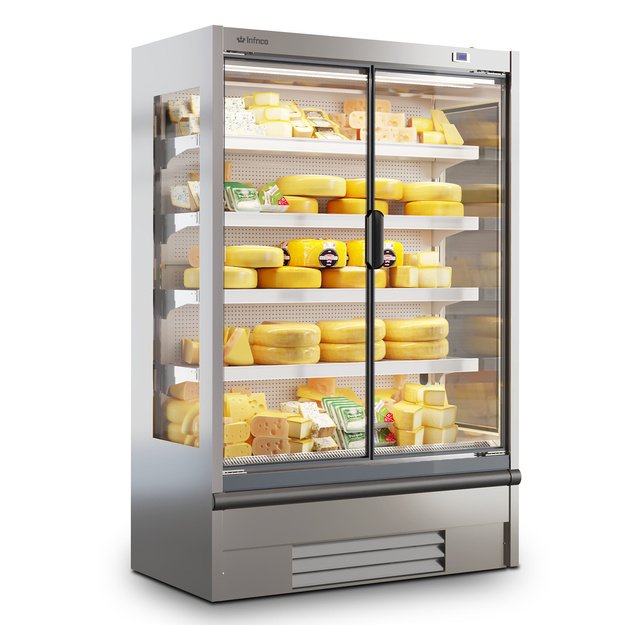

Manufacturer’s series illustration: the pictured length, colour, end panels and shelf arrangement may differ from the selected size and configuration. Refer to this card’s specification and modification choices.
| General information | |
|---|---|
| Manufacturer SKU – standard model | MS12DCBAM1 |
| Series | MSDCBA / Orleans |
| Country of origin | Spain |
| Features | Specialist AISI 316 interior |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | 0 to +2 |
| Temperature class | M1 |
| Climate Class | 3 (+25 °C / 60 % RH) |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 428 |
| Total Display Area, m² | 2.01 |
| Dimensions and weight | |
|---|---|
| Width, mm | 1330 |
| Depth, mm | 685 |
| Height, mm | 2000 |
| External Dimensions (W×D×H), mm | 1330 x 685 x 2000 |
| Construction and materials | |
|---|---|
| Interior finish | AISI 316 product-contact surfaces; other specified parts AISI 304 |
| Exterior finish | AISI 304 stainless steel |
| Controls and functions | |
|---|---|
| Controller Type | Digital |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Dynamic / forced air |
| Refrigeration system type | Self-contained – built-in unit |
| Refrigerant | R290 |
| Defrost Type | Automatic |
| Energy and electrical data | |
|---|---|
| Energy Consumption, kWh/24h | 9.9 |
| Input Power, W | 715 |
| Voltage / Frequency, V/Hz | 230 V / 1 ph / 50 Hz |
