Novameta welded shelving unit, 1500 × 500 × 1800 mm, 5 shelves

Novameta welded shelving with 5 shelves provides a 1500 mm wide, 500 mm deep and 1800 mm high stainless steel storage unit for professional kitchens, food stores and service areas. Its continuous welded frame is rigid; shelves are fixed in position and cannot be repositioned in use.

Choose the shelf surface for your stock

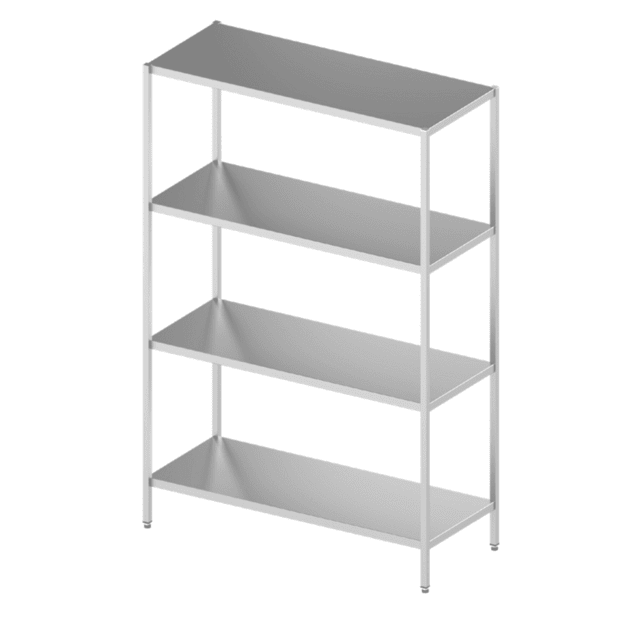

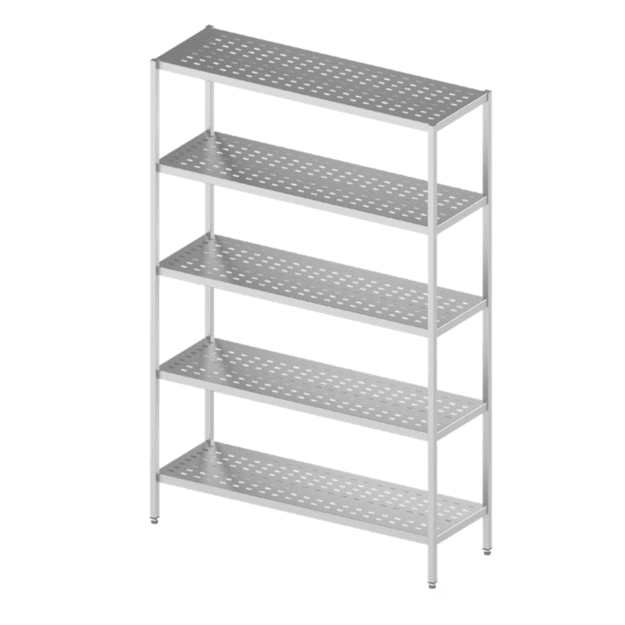

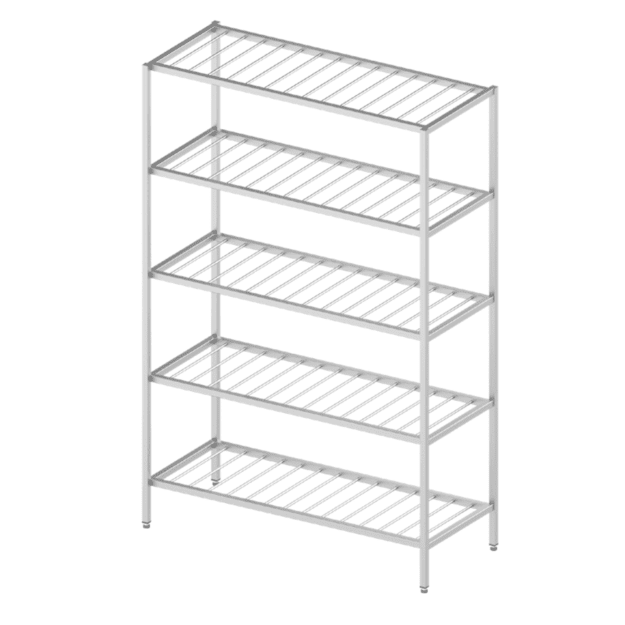

The base configuration uses solid reinforced STL5 shelves, providing continuous support for small packages and containers. STP5 perforated shelves add openings for air and moisture to pass through. STS5 grid shelves have a more open structure for air circulation and drainage. Select the shelf type above to see the surcharge for this size.

Space between shelves

Standard shelf spacing is 367 mm; the bottom shelf sits 160 mm above the floor. Five shelves provide more separate storage surfaces, with less clearance than the four-shelf version.

Load, levelling and options

The manufacturer specifies up to 120 kg per shelf with a uniformly distributed load. Stainless steel feet adjust by +25 / −5 mm to level the unit without changing shelf positions.

Options include Ø125 mm castors with 2 braked wheels and a rear panel, supplied in two parts for this width. A custom factory shelf arrangement must be selected before manufacture, with the required spacing entered in the order notes. The standard 367 mm spacing is then replaced by the agreed layout; shelves remain fixed. Standard height measurements refer to units on feet.

Manufacturer codes for this size: STL5-150/50/180, STP5-150/50/180, STS5-150/50/180, according to the selected shelf type.
