Novameta LSI2 adjustable wall shelf, 1300 × 500 × 666 mm

Novameta LSI2 is a stainless steel wall shelving system with 2 shelves and adjustable shelf height. This 1300 × 500 × 666 mm model provides open storage above the workstation for kitchen supplies, dishes and equipment, making use of available wall space.

Adjustment and everyday handling

LSI shelves can be repositioned at the wall-rail fixing points. The system is easy to assemble and uses double shelf brackets. Standard wall supports have a 14 mm profile. Multiple shelf levels provide separate storage surfaces; set their positions to suit item height and comfortable removal.

Loads and mounting

The manufacturer specifies up to 50 kg per shelf with a uniformly distributed load. This is not a point-load rating. This 1300 mm wide configuration has 2 wall supports. Select wall fixings to suit the wall construction and combined weight of shelves and contents.

666 mm is the overall construction height. Choose mounting height and shelf spacing to suit the workstation and staff reach. Match the 500 mm depth to stored containers or equipment.

Optional reinforced supports

Standard supports can be replaced by reinforced 30 mm profile LSI-00.03 supports. This product surcharge covers replacement of all 2 supports using the catalogue upgrade rate per piece. It is a replacement surcharge, not the price of an additional second set. The stated 50 kg per-shelf load rating remains the selection reference.

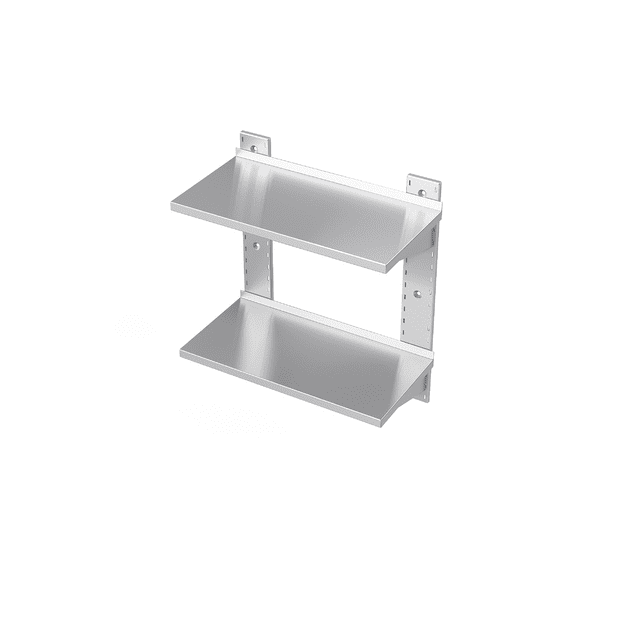

The image illustrates the series. Dimensions and support quantity of the selected size are stated in this product's specification.
