Novameta LPL2 tabletop shelf, 900 × 400 × 700 mm

Novameta LPL2 is a stainless steel tabletop shelving unit with 2 shelf levels. This 900 × 400 × 700 mm model provides storage above the worktop for dishes, containers and everyday kitchen supplies. Choose the size to suit the work table and comfortable reach from the workstation.

Shelf arrangement and reach

LPL2 has 2 shelf levels with 317 mm standard clear gaps. The drawing shows the same clearance from the table surface to the lowest shelf. Allow room for loading and removal as well as the height of stored items. Match the 400 mm depth to containers and staff reach.

Load rating and supports

The manufacturer specifies up to 30 kg per shelf with a uniformly distributed load. This 900 mm wide model has 4 supports. The easy-to-assemble LPL family is designed for different types of work table. Check table dimensions and its capacity to support the shelving and all stored items.

Optional accessories

Choose the quantity of A-LP1-SV reinforcement profiles separately. This product offers one to 2 profiles, priced using the nominal 900 mm width and selected quantity. Agree their positioning for the shelves. The A-STU-G rear panel is also priced by width. Select the left A-LP1U-K panel, right A-LP1U-D panel or both.

Z-HEIGHT provides factory height customisation at a surcharge. Agree the required dimensions before ordering. Specifications show standard dimensions and clearances. Accessories do not establish a higher load rating.

Ceiling-mounting requirements

The catalogue offers Z-CEILING ceiling mounting and Z-ADJUSTABLE ceiling mounting with a 250 mm height-adjustment range. Configuration and price are agreed individually. The base configuration of this product stands on a work table.

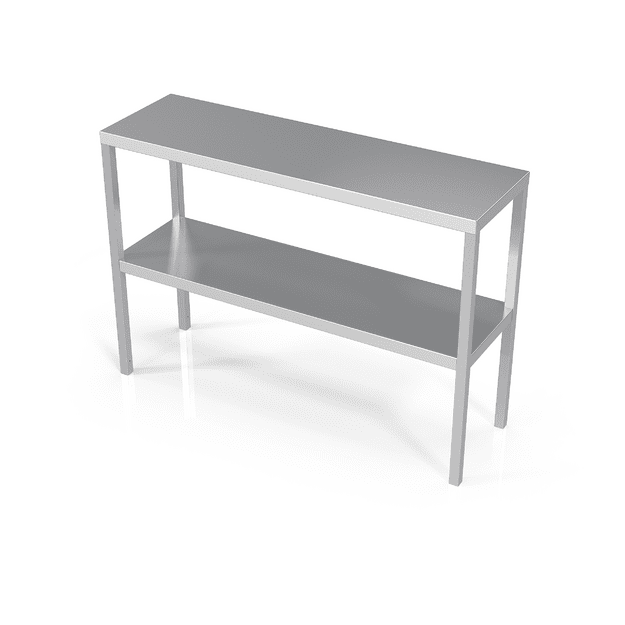

The image illustrates the series. Dimensions and support quantity of the selected size are stated in this product's specification.
