Novameta LPL1 tabletop shelf, 2400 × 300 × 400 mm

Novameta LPL1 is a stainless steel tabletop shelving unit with 1 shelf level. This 2400 × 300 × 400 mm model provides storage above the worktop for dishes, containers and everyday kitchen supplies. Choose the size to suit the work table and comfortable reach from the workstation.

Shelf arrangement and reach

LPL1 provides one shelf at a standard overall height of 400 mm, creating a single extra storage surface above the table. Match the 300 mm depth to containers and staff reach.

Load rating and supports

The manufacturer specifies up to 30 kg per shelf with a uniformly distributed load. This 2400 mm wide model has 6 supports. The easy-to-assemble LPL family is designed for different types of work table. Check table dimensions and its capacity to support the shelving and all stored items.

Optional accessories

Choose the quantity of A-LP1-SV reinforcement profiles separately. This product offers one profile, priced using the nominal 2400 mm width and selected quantity. Agree their positioning for the shelves. The A-STU-G rear panel is also priced by width. The catalogue specifies a two-part rear panel at this size. Select the left A-LP1U-K panel, right A-LP1U-D panel or both.

Z-HEIGHT provides factory height customisation at a surcharge. Agree the required dimensions before ordering. Specifications show standard dimensions and clearances. Accessories do not establish a higher load rating.

Ceiling-mounting requirements

The catalogue offers Z-CEILING ceiling mounting and Z-ADJUSTABLE ceiling mounting with a 250 mm height-adjustment range. Configuration and price are agreed individually. The base configuration of this product stands on a work table.

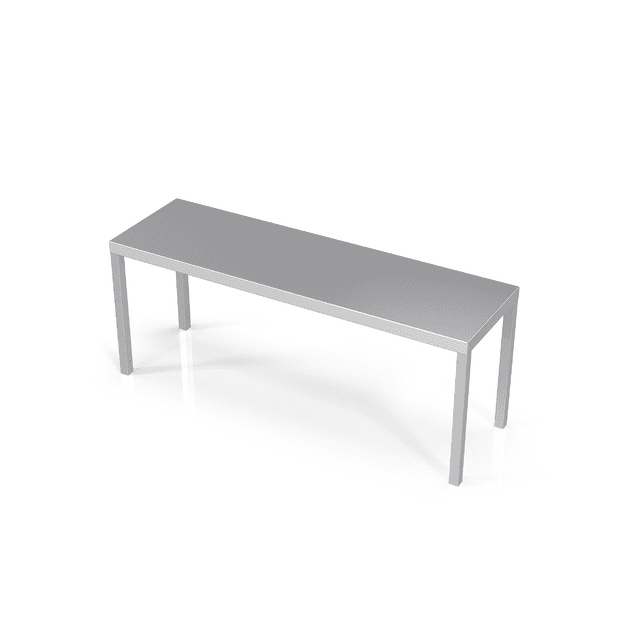

The image illustrates the series. Dimensions and support quantity of the selected size are stated in this product's specification.
