Multideck display freezer INFRICO Vancouver MN12 BTPC L1 – 1370 × 780 × 2000 mm

INFRICO MN12 BTPC L1 – Vancouver is a spacious 2000 mm high plug-in display freezer for self-service frozen-food merchandising without the additional height of a roof-mounted unit. Four wire-shelf levels and a base deck organise the assortment. Triple-glazed Ecofreeze doors without electrical heaters, vertical cool-white 24 V LED lighting and electronic fans are designed for retail display.

This base configuration measures 1370 × 780 × 2000 mm including both end panels. Catalogue capacity is 664 litres. Its standard temperature class is L1, with the manufacturer application range -25 to -23 °C.

L1 is a frozen-product test temperature class, not the controller setpoint range. The cabinet maintains storage conditions for already frozen goods; it does not replace a blast freezer.

Included equipment and finish selection

The base price includes the cabinet and both compatible standard end panels. The overall width therefore already includes the two panels. Alternative panel types are charged as the pair-price difference.

The manufacturer states automatic closing within 0–80/85° and a maximum door opening of 93° for the oleodynamic hinges, supporting access to the display and closing after product selection.

Accessories and installation planning

For painted configurations, select the exterior and interior colours separately. White, black and RAL 7016 are offered without an extra colour surcharge; other RAL colours carry the surcharge shown in the selection.

The compatible castor set helps move the cabinet for cleaning and maintenance; plan access and utility connections accordingly.

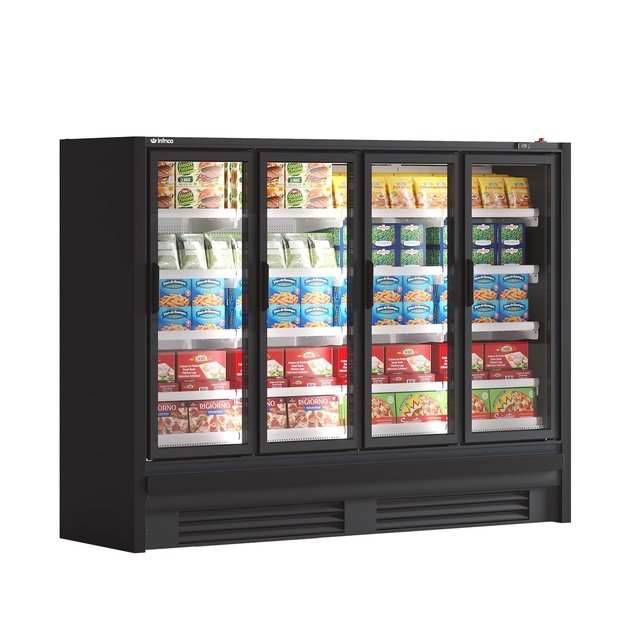

Manufacturer’s series illustration: the pictured length, colour, end panels and shelf arrangement may differ from the selected size and configuration. Refer to this card’s specification and modification choices.

Manufacturer technical data and dimensional drawings (PDF)
