excl VAT
Product code: ABT201C
Available quantity 4-6 weeks
Chamber-style blast freezer: up to 60 kg of food frozen to -18 °C per cycle. 1 GN 1/1 trolley. Touch-screen control with recipe memory. Supplied disassembled; installation quoted separately. Made in Spain.
| Manufacturer: | Infrico |

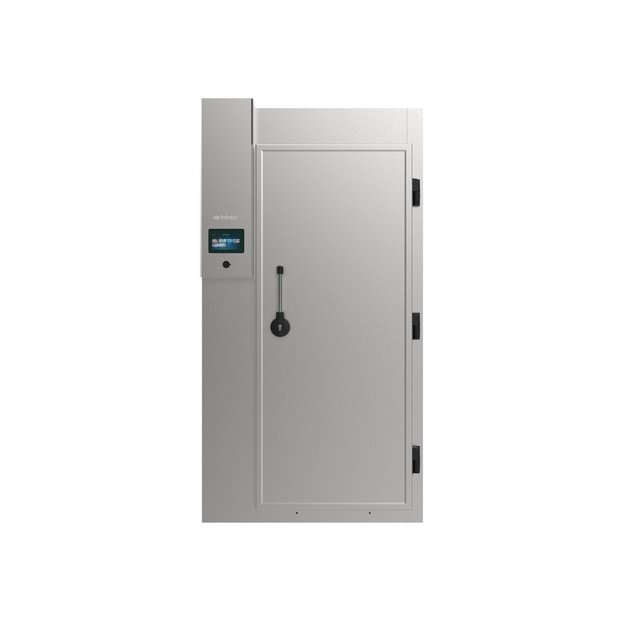

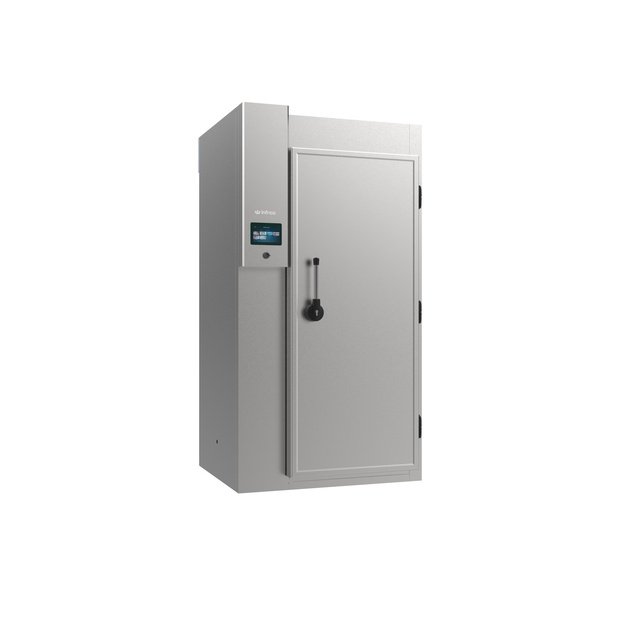

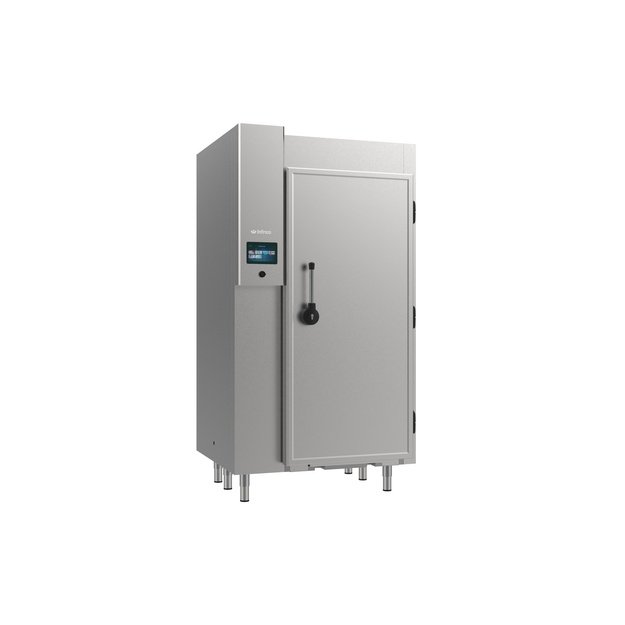

INFRICO ABT201C is a compact single-trolley blast chiller/freezer for central kitchens, catering operations and food production. Loaded trolleys enter the chamber directly, reducing individual tray transfers between cooking, chilling and storage stages. Rated batch performance: 110 kg chilling or 60 kg freezing per cycle.
AISI 304 stainless steel construction, 80 mm insulation and forced air circulation support intensive professional use. Rounded internal corners simplify cleaning. A door-mounted touch controller and USB port provide cycle control and transfer of settings, programmes and HACCP alarm information. INFRICO tests refrigeration circuits for leaks in a helium chamber.
“Modifications” selects a complete factory version. The base price is for C or CP; the surcharge for another modification is added to it. Choose one alternative per unit.
| Modification | What changes? | Trolley capacity | Surcharge excl. VAT |
|---|---|---|---|
| ABT201C | Standard version: trolley and wheels inside the chamber, one door. | 1 × GN 1/1; 1 × GN 2/1; 1 × 600 x 400 | Included |
| ABT201S | For a compatible Rational trolley; wheels stay outside, one door. | 1 compatible Rational GN 1/1 | +318.40 € |
| ABT201P | Two opposite doors for pass-through workflow. | 1 × GN 1/1; 1 × GN 2/1; 1 × 600 x 400 | +1414.40 € |

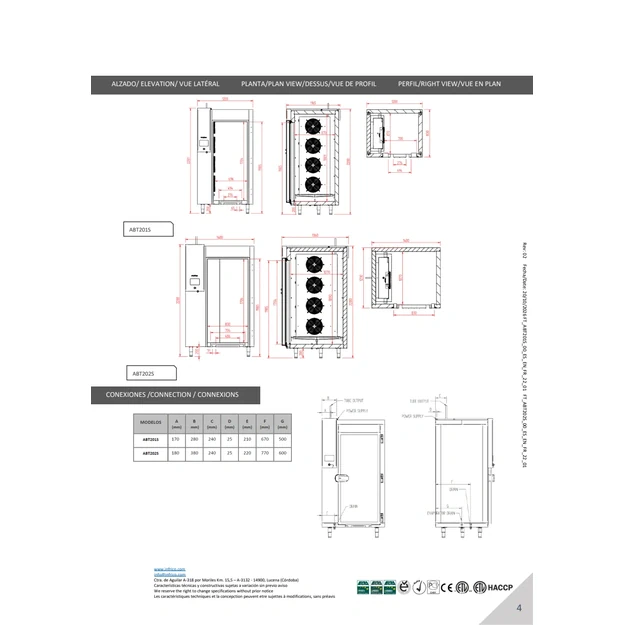

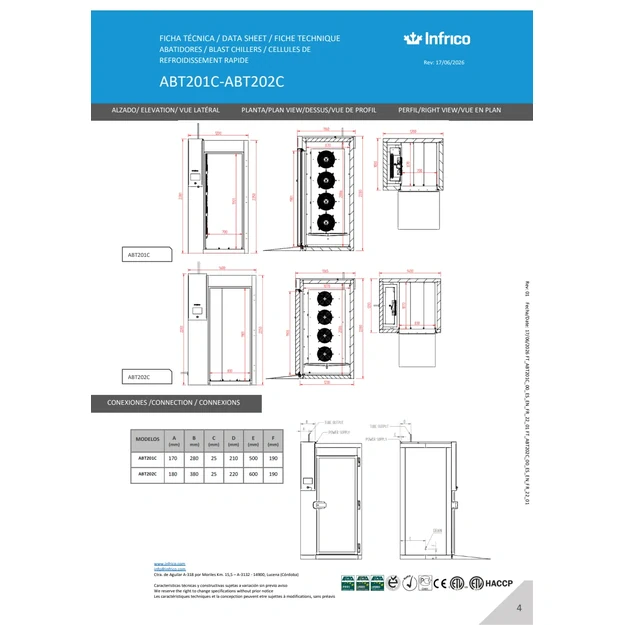

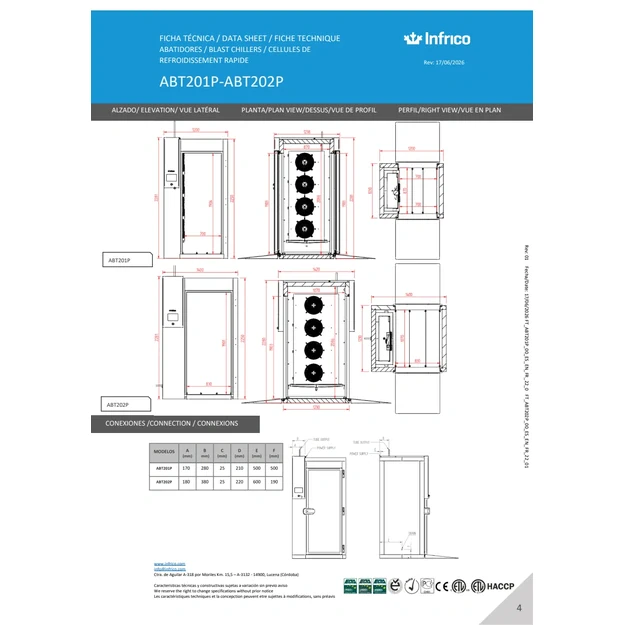

Code meanings: C keeps the entire trolley inside; S leaves the compatible Rational trolley wheels outside; P is pass-through with two doors. In CP, SP and PP the added final P denotes enhanced performance. PP combines enhanced performance with two doors. Modifications can change cabinet depth and other specifications. The specification tab describes the base ABT201C; see each alternative’s PDF below for its drawing.
The base ABT201C accommodates 1 GN 1/1 or 1 GN 2/1 or 1 600 x 400 trolleys. These are alternative loads, not quantities to add together. Each trolley carries 20 matching pans or trays. Trolley capacity does not increase the permitted total batch mass.

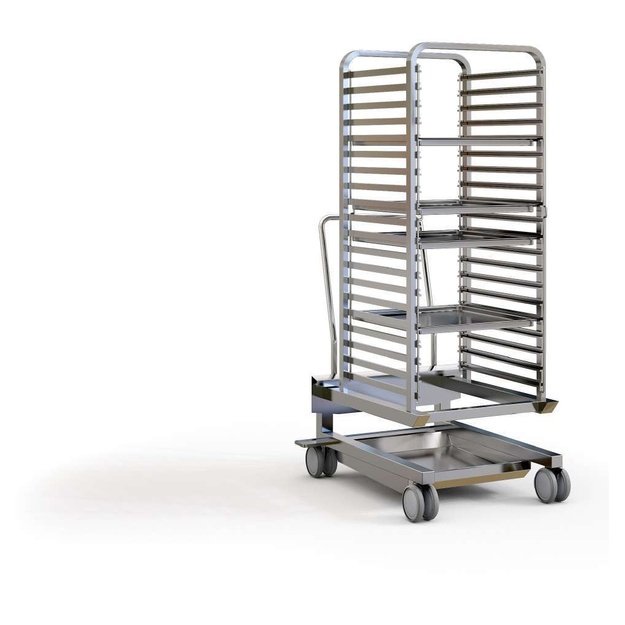

“Trolleys and loading ramp” specifies the trolley format, quantity and whether a ramp is included. Only sets for the selected C/CP or P/PP modification are shown; select no additional trolley if you already own a compatible one. External dimensions: CBGN2011 (GN 1/1) 455 x 635 x 1787 mm; CBGN2021 (GN 2/1) 660 x 755 x 1787 mm; CBE20 (600 x 400) 530 x 705 x 1787 mm. Tray format is not the overall trolley size: check the frame, wheels, door opening and travel route before ordering.
The general CBGN/CBE trolleys and RAMABT21 ramp are not for S/SP. These modifications need the matching compatible Rational trolley, quoted separately. The photo illustrates compatibility; a trolley is not included in the equipment price.
The optional RAMABT21 ramp is for C/P/CP/PP versions. Bluetooth and Wi-Fi are alternative optional controller connections. Other voltages or condenser configurations require an individual quotation.
Declared chilling: +90 to +3 °C in less than 90 minutes; freezing: +90 to −18 °C in less than 270 minutes. These are product temperature targets. Results depend on food type, layer thickness, starting temperature, loading and airflow. Chamber air temperature is not the final food temperature.
The standard remote condensing unit is included. Trolleys, trays and optional accessories are additional. Equipment is supplied disassembled for assembly on site. Assembly, installation, connection, refrigeration pipework and commissioning are excluded from the equipment price. Scope, feasibility and cost are agreed individually for the site, condensing unit location, pipework route and available services. Consultation is required before ordering.
Warranty: 2 years.
| General information | |
|---|---|
| Manufacturer SKU – standard model | ABT201C |
| Series | ABT 20 |
| Country of origin | Spain |
| Features | Roll-in trolley; Remote condensing unit; Pass-through (optional); Rational trolley (optional) |
| Temperature and performance | |
|---|---|
| Temperature Range, °C | +90 → +3 / +90 → -18 |
| Blast freezing capacity → -18 °C, kg | 60 |
| Freezing cycle | +90 → -18; <270 min |
| Blast chilling capacity → +3 °C, kg | 110 |
| Chilling cycle | +90 → +3; <90 min |
| Capacity and internal fittings | |
|---|---|
| Refrigerated storage volume, l | 1860 |
| Tray format | GN 1/1; GN 2/1; 600 x 400 |
| Trolley capacity, pcs | 1 |
| Dimensions and weight | |
|---|---|
| Width, mm | 1200 |
| Depth, mm | 1160 |
| Height, mm | 2280 |
| External Dimensions (W×D×H), mm | 1200 x 1160 x 2280 |
| Gross / Net Weight, kg | 372 / 347 |
| Construction and materials | |
|---|---|
| Exterior | AISI 304 |
| Interior finish | AISI 304 |
| Controls and functions | |
|---|---|
| Controller Type | Touch screen |
| Refrigeration and ventilation system | |
|---|---|
| Cooling Type | Dynamic / forced air |
| Refrigerant | R452A |
| Energy and electrical data | |
|---|---|
| Input Power, W | 10288 |
| Voltage / Frequency, V/Hz | 380 V / 3 ph / 50 Hz |
