High-capacity open multideck INFRICO Casablanca ML18 PBU M2 – 1955 × 885 × 2327 mm

INFRICO ML18 PBU M2 – Casablanca is a high-capacity open multideck with a top refrigeration unit, a low front and convenient self-service access. It offers a large open retail display; the H1 version with an upper interior mirror is particularly oriented towards fruit-and-vegetable merchandising. Adjustable tilting shelves organise the assortment, while standard electronic fans, 4000 K LED lighting and a night curtain complete the retail configuration.

This base configuration measures 1955 × 885 × 2327 mm including both end panels. Catalogue capacity is 1844 litres. Its standard temperature class is M2, with the manufacturer application range +2 to +4 °C.

Choosing a temperature modification

M2 is the base version. H1 serves a warmer application; its test-package limits are +1 to +10 °C. H1 replaces one shelf with an upper mirror for fruit-and-vegetable merchandising. It is a factory configuration rather than just a change of controller setting.

Configuration comparison

The table describes standard factory versions. Finish, end panels and accessories can change the final price. The main specification describes the base configuration.

Included equipment and finish selection

The base price includes the cabinet and both compatible standard end panels. The overall width therefore already includes the two panels. Alternative panel types are charged as the pair-price difference.

Standard end panels are solid with a mirrored inner face; Display glass panels are an optional upgrade.

Accessories and installation planning

For painted configurations, select the exterior and interior colours separately. White, black and RAL 7016 are offered without an extra colour surcharge; other RAL colours carry the surcharge shown in the selection.

The Lighting and shelf upstands selection combines a lighting solution with or without front retaining strips. The displayed surcharge is for the complete set covering this cabinet’s standard shelf rows. Available choices follow the selected modification and its shelf count. Vertical LED provides a whole-cabinet alternative to under-shelf lighting.

An additional shelf row is supplied without LED. The lighting set covers the standard shelf rows; lighting for an additional row and any extra INOX shelf row must be agreed separately.

The Canopy LED light spectrum selection allows the standard light spectrum to be replaced with the RT spectrum for meat presentation.

For a continuous retail line comprising several cabinets, contact us to coordinate the module sequence, panels, joining components and service access. Maintain the manufacturer-required airflow and maintenance clearances at the installation position. Warranty: 2 years.

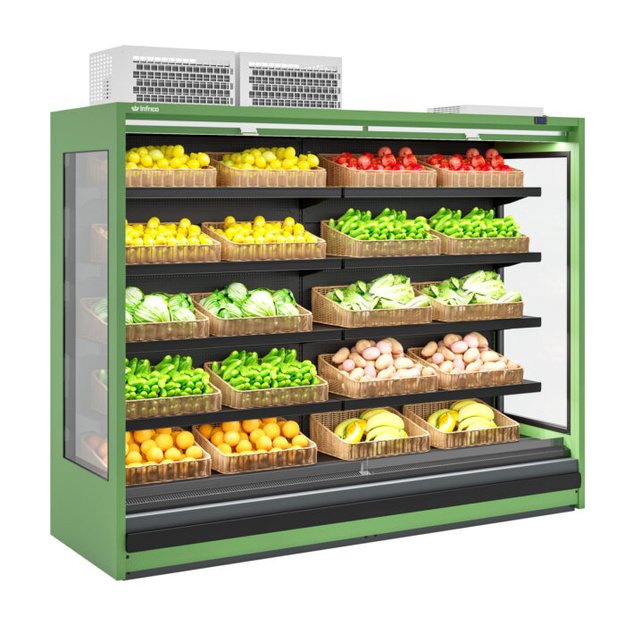

Manufacturer’s series illustration: the pictured length, colour, end panels and shelf arrangement may differ from the selected size and configuration. Refer to this card’s specification and modification choices.

Manufacturer technical data and dimensional drawings (PDF)
