High-capacity glass-door multideck INFRICO Detroit ML12 DGU22 M1 – 1330 × 885 × 2480 mm

INFRICO ML12 DGU22 M1 – Detroit is a high-capacity retail multideck with a top-mounted refrigeration unit for a broad supermarket or food-store assortment. A low base deck makes effective use of the internal height, while clear double-glazed doors maintain product visibility. Standard equipment includes high-efficiency electronic fans, 4000 K canopy LED lighting and adjustable tilting shelves. This version has its own top unit and does not require a separate central refrigeration system.

This base configuration measures 1330 × 885 × 2480 mm including both end panels. Capacity: 1046 litres. Its standard temperature class is M1, with the manufacturer application range 0 to +2 °C.

Choosing a temperature modification

M1 and M2 are different factory configurations, not two settings on one universal cabinet. Temperature class is assessed using product-simulating test packages: M1 covers -1 to +5 °C and M2 -1 to +7 °C. The application range is stated separately. Choose according to the storage requirements of the products being displayed.

H1 is intended for a warmer display application, particularly fruit and vegetables. An upper mirror replaces one shelf, so compare the shelf count and display area before ordering.

Configuration comparison

The table describes standard factory versions. Finish, end panels and accessories can change the final price. The main specification describes the base configuration.

Included equipment and finish selection

The base price includes the cabinet and both compatible standard end panels. The overall width therefore already includes the two panels. Alternative panel types are charged as the pair-price difference.

Standard end panels are solid with a mirrored inner face; glass panels are an optional upgrade.

Optional VSC inverter

VSC adjusts compressor speed to refrigeration demand. Under partial load it can reduce electricity use, noise and waste heat while supporting more stable temperature. Potential savings depend on the model and operating conditions. The table states base-version figures. Read more about INFRICO VSC operation, benefits and payback assessment.

DGU22 M1/M2 have five shelves plus the deck; H1 has four shelves plus the deck. The 2480 mm overall height stated here includes the top unit.

The manufacturer states automatic closing within 0–80/85° and a maximum door opening of 93° for the oleodynamic hinges, supporting access to the display and closing after product selection.

Accessories and installation planning

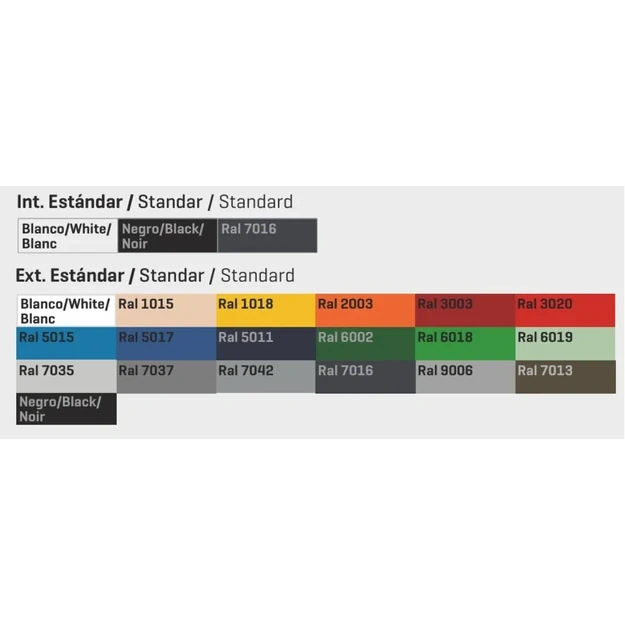

For painted configurations, select exterior and interior colours separately. The standard exterior palette is included without a colour surcharge: white, black, RAL 1015, RAL 1018, RAL 2003, RAL 3003, RAL 3020, RAL 5015, RAL 5017, RAL 5011, RAL 6002, RAL 6018, RAL 6019, RAL 7035, RAL 7037, RAL 7042, RAL 7016, RAL 9006, RAL 7013. Standard interior colours for this model are white and black and RAL 7016. Choose a colour outside the corresponding standard palette using Other RAL colour; only this choice carries the indicated colour surcharge. Specify the custom RAL code in the order notes.

The Lighting and shelf upstands selection combines a lighting solution with or without front retaining strips. The displayed surcharge is for the complete set covering this cabinet’s standard shelf rows. Available choices follow the selected modification and its shelf count. Vertical LED provides a whole-cabinet alternative to under-shelf lighting.

An additional shelf row is supplied without LED. The lighting set covers the standard shelf rows; lighting for an additional row and any extra INOX shelf row must be agreed separately.

The Canopy LED light spectrum selection allows the standard light spectrum to be replaced with the RT spectrum for meat presentation.

The optional SCC system helps reduce glass condensation.

For a continuous retail line comprising several cabinets, contact us to coordinate the module sequence, panels, joining components and service access. Maintain the manufacturer-required airflow and maintenance clearances at the installation position. Warranty: 2 years.

Low-emissivity double-glazed doors help limit heat transfer into the closed display while maintaining a clear view of the products. Automatic closing helps reduce the time doors remain open after product selection.

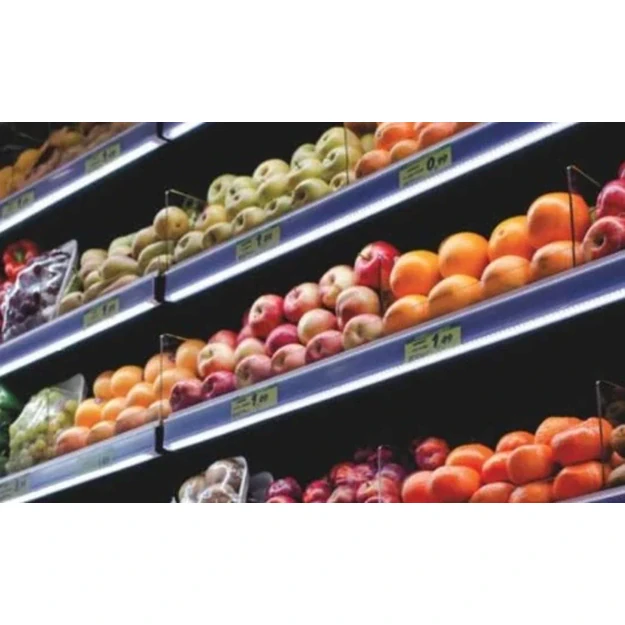

Under-shelf LED lighting helps illuminate products on each display level, especially where the shelf above shades the packaging. The manufacturer highlights low heat emission, low energy use and high light output. The gallery includes an example illustrating this lighting arrangement.

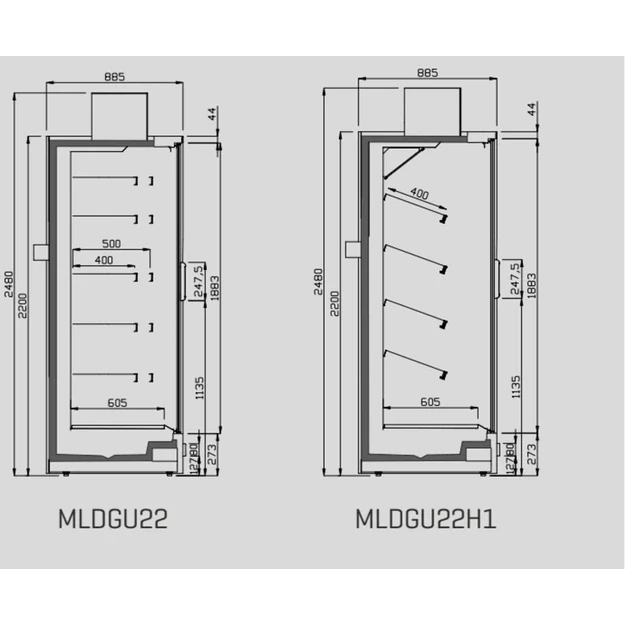

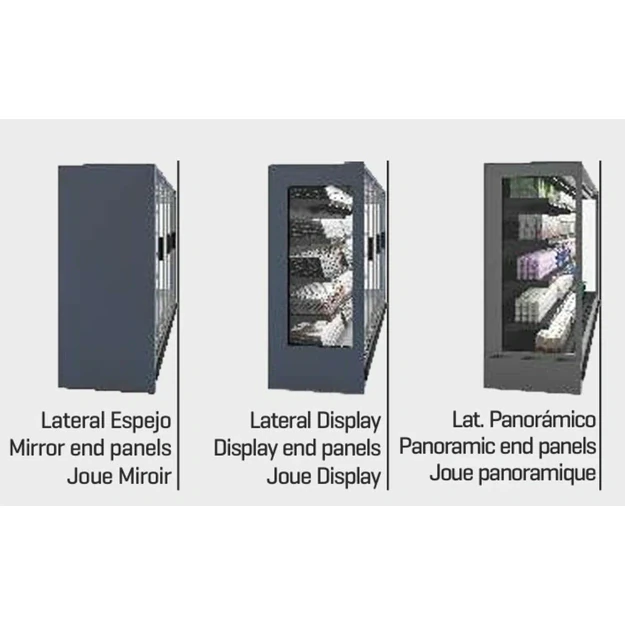

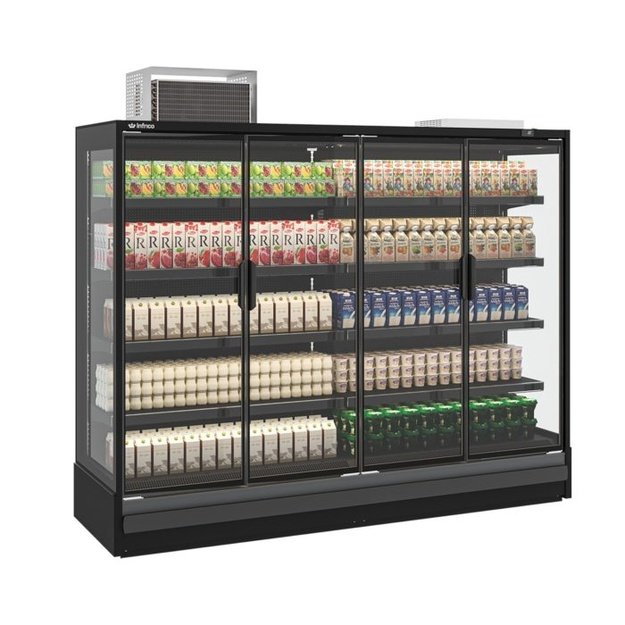

The main photograph shows a model from the range with glass end panels. The base price includes two solid panels with mirrored inner faces; glass panels are an optional upgrade. The gallery includes a comparison of the panel types offered for this range and its dimensional drawing.

Manufacturer range technical data and drawing (PDF, 2 pages)
