Glass-door multideck refrigerator INFRICO Rotterdam MN12 DCPC M1 – 1330 × 785 × 2000 mm

INFRICO MN12 DCPC M1 – Rotterdam is a full-height double-glazed-door multideck for clear chilled merchandising and a choice of temperature applications. Toughened low-emissivity glass, oleodynamic hinges, adjustable tilting shelves and standard 4000 K canopy LED lighting form a retail-focused package. M1 and M2 have four shelves plus the base deck; H1 replaces one shelf with an upper interior mirror.

This base configuration measures 1330 × 785 × 2000 mm including both end panels. Catalogue capacity is 526 litres. Its standard temperature class is M1, with the manufacturer application range 0 to +2 °C.

Choosing a temperature modification

M1 and M2 are different factory configurations, not two settings on one universal cabinet. Temperature class is assessed using product-simulating test packages: M1 covers -1 to +5 °C and M2 -1 to +7 °C. The application range is stated separately. Choose according to the storage requirements of the products being displayed.

H1 is intended for a warmer display application, particularly fruit and vegetables. An upper mirror replaces one shelf, so compare the shelf count and display area before ordering.

Configuration comparison

The table describes standard factory versions. Finish, end panels and accessories can change the final price. The main specification describes the base configuration.

Included equipment and finish selection

The base price includes the cabinet and both compatible standard end panels. The overall width therefore already includes the two panels. Alternative panel types are charged as the pair-price difference.

Standard end panels are solid with a mirrored inner face; Display glass panels are an optional upgrade.

For this size, M1/M2 can be supplied as an INOX configuration: stainless interior, shelves, exterior and matching stainless end panels are included together. A second stainless panel pair is not required. An H1 INOX version is not offered. Painted interior and exterior colours follow the manufacturer palette.

The manufacturer states automatic closing within 0–80/85° and a maximum door opening of 93° for the oleodynamic hinges, supporting access to the display and closing after product selection.

Accessories and installation planning

For painted configurations, select the exterior and interior colours separately. White, black and RAL 7016 are offered without an extra colour surcharge; other RAL colours carry the surcharge shown in the selection.

The INOX modification includes the matching stainless steel end-panel pair. Its finish is selected under Modifications.

The Lighting and shelf upstands selection combines a lighting solution with or without front retaining strips. The displayed surcharge is for the complete set covering this cabinet’s standard shelf rows. Available choices follow the selected modification and its shelf count. Vertical LED provides a whole-cabinet alternative to under-shelf lighting.

An additional shelf row is supplied without LED. The lighting set covers the standard shelf rows; lighting for an additional row and any extra INOX shelf row must be agreed separately.

The Canopy LED light spectrum selection allows the standard light spectrum to be replaced with the RT spectrum for meat presentation.

The optional SCC system helps reduce glass condensation.

The compatible castor set helps move the cabinet for cleaning and maintenance; plan access and utility connections accordingly.

For a continuous retail line comprising several cabinets, contact us to coordinate the module sequence, panels, joining components and service access. Maintain the manufacturer-required airflow and maintenance clearances at the installation position. Warranty: 2 years.

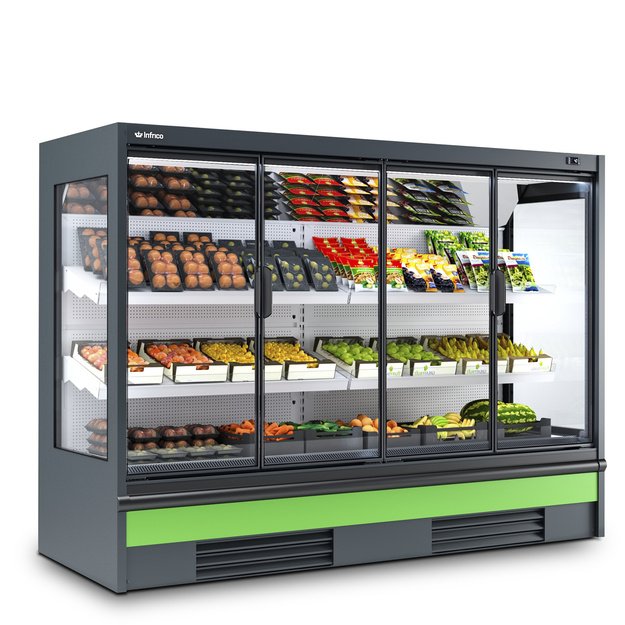

Manufacturer’s series illustration: the pictured length, colour, end panels and shelf arrangement may differ from the selected size and configuration. Refer to this card’s specification and modification choices.

Manufacturer technical data and dimensional drawings (PDF)
